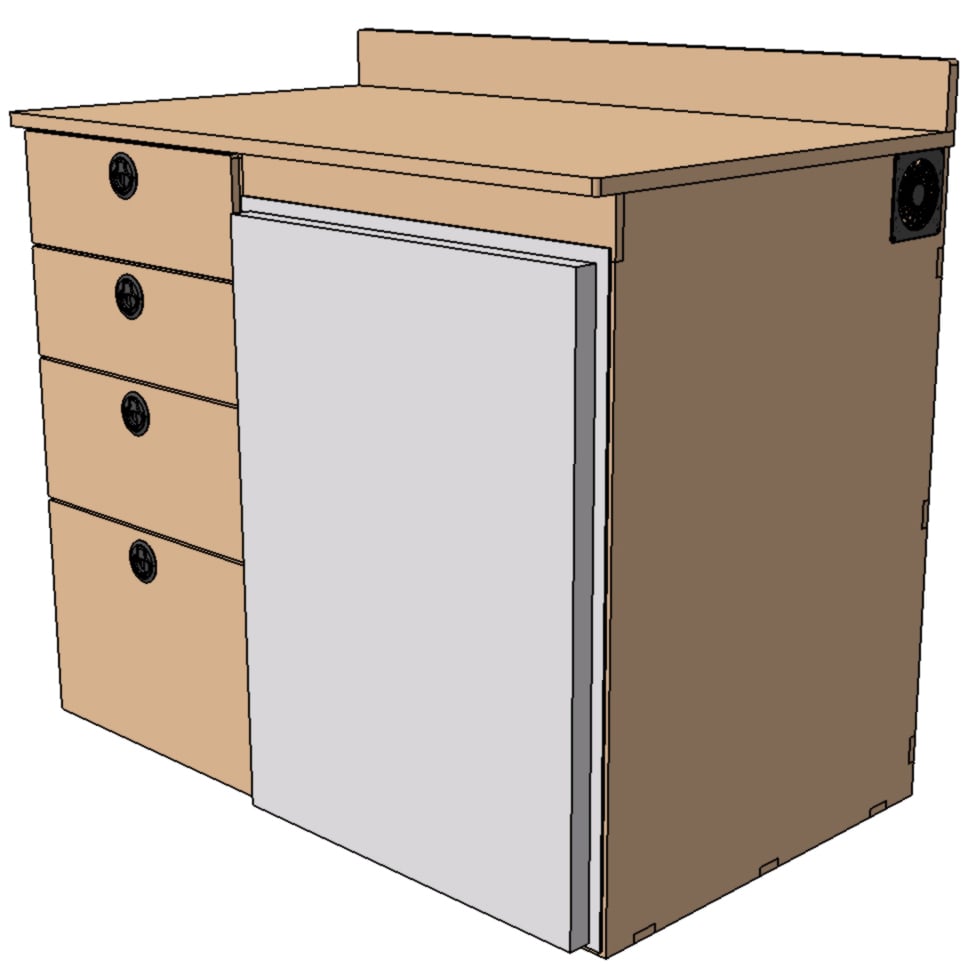

Read This First This is not a turnkey “Ikea-style” project… You will need tools (clamps, brad nail gun, etc.) and woodworking skills. Please read our Fridge Cabinet Guide for an overview of the process and final result! This cabinet is designed to house a Nova Kook R5810 Fridge ONLY. This cabinet is designed to fit over the wheel well and towards the front. This is a .dxf file (2D) and .step file (3D) with only geometry. You are responsible for creating your setup, tool paths, and generating the g-code for your machine. Tools required: 1/8″ or 1/4″ Flat End Mill. Material: 1 x Nova Kool R5810 Fridge. 4 x Door Latches. 3 x Repon NJ35D65 20″ Drawer Slide 100LB. 1 x KV 8850FM 16″ Drawer Slide 200LB. 1 x Piano Hinge 1 ft (for bed step). 2 x Noctua 92x14mm Fan. 1 x Temperature Controller (optional). Fridge Cabinet DIY Build (Driver Side) | Transit Van ConversionBuild Journal Van #2 | Furniture & Layoutfaroutride.com/fridge-cabinet Files Included: Flat Parts (.dxf and .step) 3D Assembly (.step) 3D Printed Parts (Access Hole Covers, jigs, fan mount, etc.) DOWNLOAD Get the CNC Package and log in to unlock this download (and more)! �� Change log: V1: Initial release. V2: #4 screw holes added to non-visible surfaces. To facilitate assembly and gluing (use #4 screws to minimize the use of clamps).
