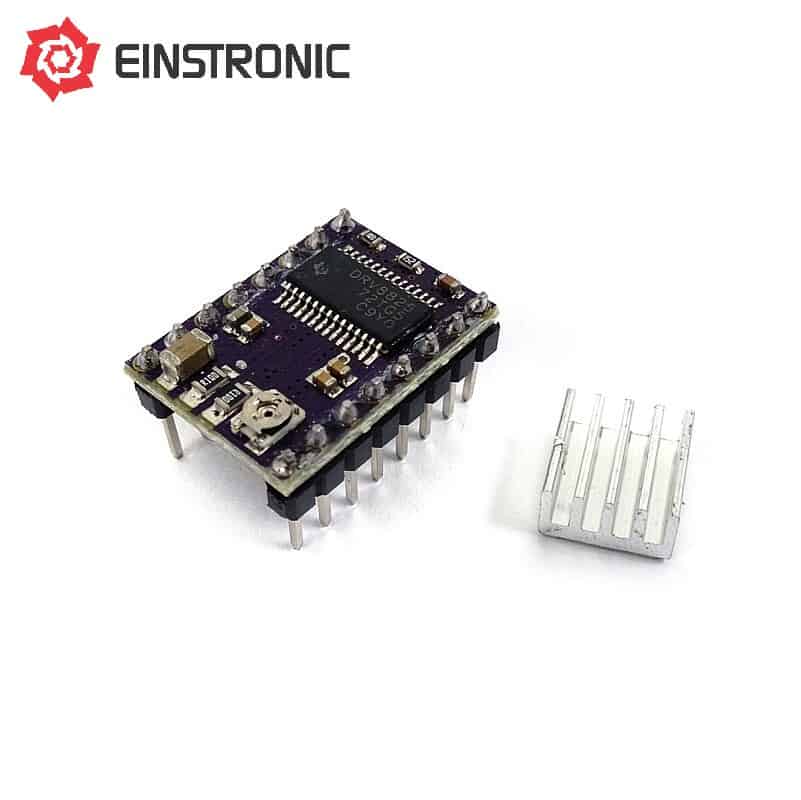

DescriptionThe DRV8825 is a motor driver with two H-bridge drivers and a microstepping indexer. The driver has a maximum output capacity of 45 V and ? 2.5 A. It can operate bipolar stepper motors in full, 1/2, 1/4, 1/8, 1/16 and 1/32-step modes. This driver module is generally used in 3D printers, robotics, ATMs and game machines.FeaturesOperating voltage : 8.2 – 45 VMax. current per phase : 2.5 ACompatible with Pololu A4988 footprintSix step resolution: Full step, ? step, ? step, 1/8, 1/16 and 1/32 stepAdjustable output current via potentiometerAutomatic current decay mode detectionOver temperature shutdown circuitUnder-voltage lock outOver current shutdown Package includes1 x DRV8825 stepper motor driver module1 x 9mm Heatsink AttachmentsTutorial with code : How to control a stepper motor with DRV8825 driver and Arduino – MakerGuidesTutorial with code : Control Stepper Motor with DRV8825 Driver Module & Arduino – LastMinuteEngineersDatasheet – DRV8825
