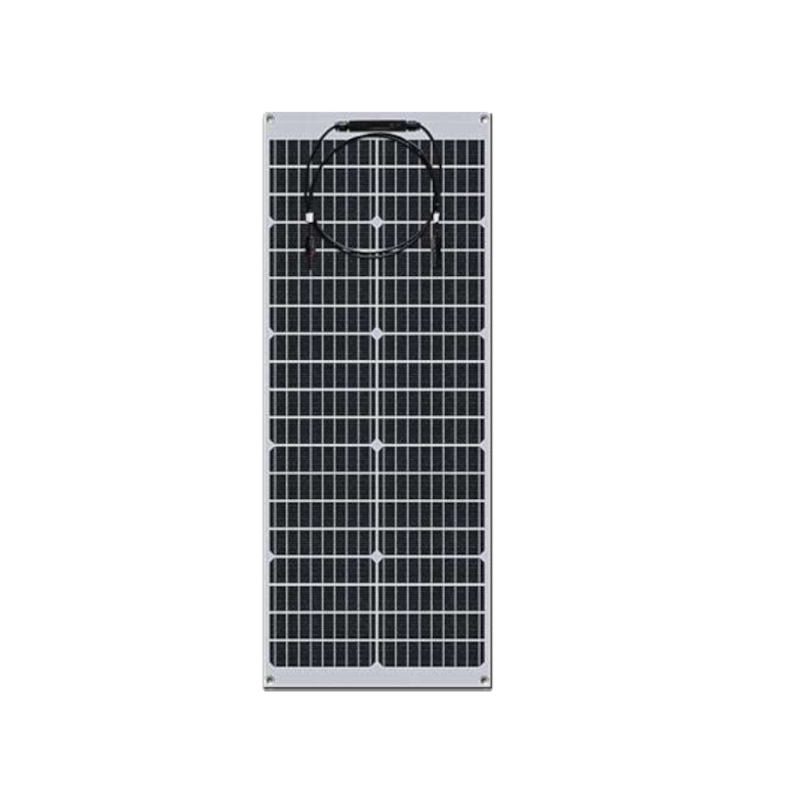

Description PV Semi-Flexible Panel Invictus SRF-MH-50 60W 12V Mono Dimensions 885 x 350 x 2 mm Flexible, light and ultra-thin solar panel, waterproof IP67, with connection cables and MC4 type plugs, without glass or metal with holes (grommets) on the edges for easier support. It has a power conversion efficiency of up to 23% and can be installed on a curved surface up to 30°. It can be fixed on a boat or caravan, on roofs where they cannot bear weight, building facades and generally where conventional photovoltaic panels with glass and aluminum frames are not acceptable. The product is made of ETFE composite material, which makes : 70% lighter than conventional solar panels, less expensive to transport, easier to install INVICTUS panels are CE certified to withstand the maximum test load (2400 Pascal), while special materials and strict quality control ensure the long life of the photovoltaic panel. For the proper and safe installation of semi-flexible photovoltaic panels, so that the warranty can be valid, it is recommended to use Velcro-type adhesive tapes or to place them in a special support folder/case, when they are not factory pre-drilled and do not have holes for easier mounting. These methods ensure easy installation, removable application, and prevent possible damage to the panel. Technical Specifications Max Power/Pmax 60W Max Power Voltage/Vmp 19V Max Power Current/Imp 3.16A Open Circuit Voltage/Voc 22.8V Short Circuit Current/Isc 3.48A Maximum System Voltage 600V Series Fuse Rating 10Α Cell Efficiency >23% Number of Cells in Series 38 Cell Dimension 166 x 41.5mm Working Temperature -40℃~ 85℃ Max Power Tolerance （0~3W） Datasheet SRF-MH-60 Invictus Semi-Flexible PV Panel Made in PRC Check out more products related to photovoltaics. See more semi-flexible panels See Charge Controllers. See more photovoltaics.
