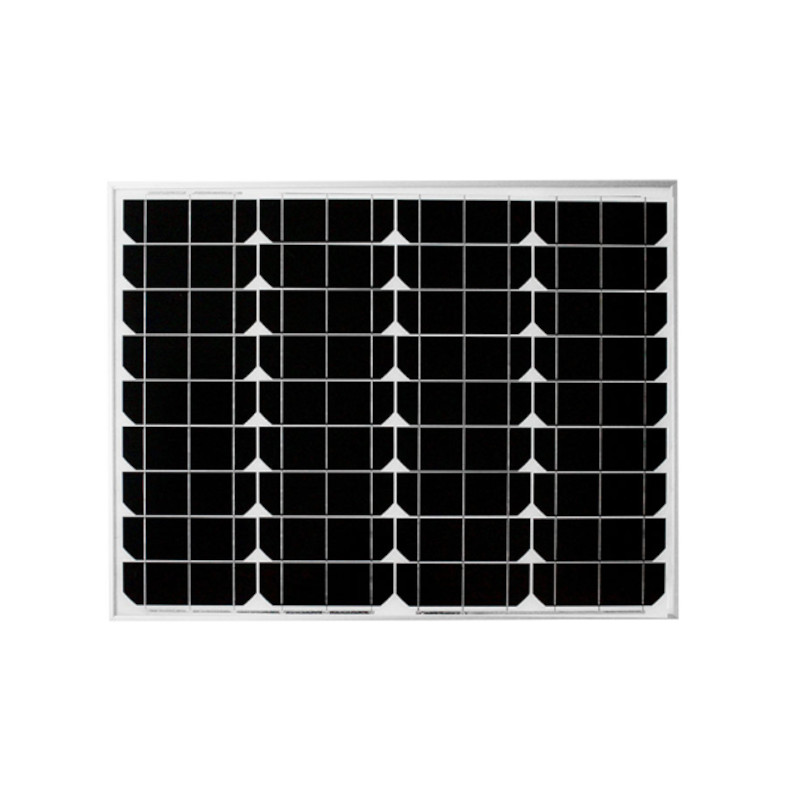

Description Photovoltaic Panel Mono Frame Solar 50W Dimensions 565 x 453 x 30 mm PV Panel Mono Frame Solar 50W Manufacturing Original cell sorting system ensures the best electric cell match EL-Testing before packing Comprehensive module power testing, 100% positive output tolerance guaranteed Performance High module conversion efficiency High-quality cells and partial cell design lower series resistance and reduce power degradation Optimized performance under low light conditions. The integrated bypass-diodes allow the panel to work when partially shaded IP67 rated junction, reliable cables and standard MC4 connectors improve the stability Technical Specifications Nominal Power 50W Cell Efficiency 22% Maximum Power Current 2.76A Maximum Power Voltage 18.15V Open-circuit Voltage 21.57V Short-circuit Current 2.92A Maximum System Voltage 500V Output Tolerance 0~ 3% Cable （MC4） 500mm / 2.5mm² Module Structure Aluminum Frame / Glass / EVA /Backsheet Junction box rating ≥IP67 Cell 210 x 33.2–16 x 2 Working Temperature -40~ 80℃ Module Dimensions 453 x 565 x 30mm Weight（Net /Gross） 2.75/3.2kg Check Charge Controllers on our e-shop. Check more Solar Panels.
