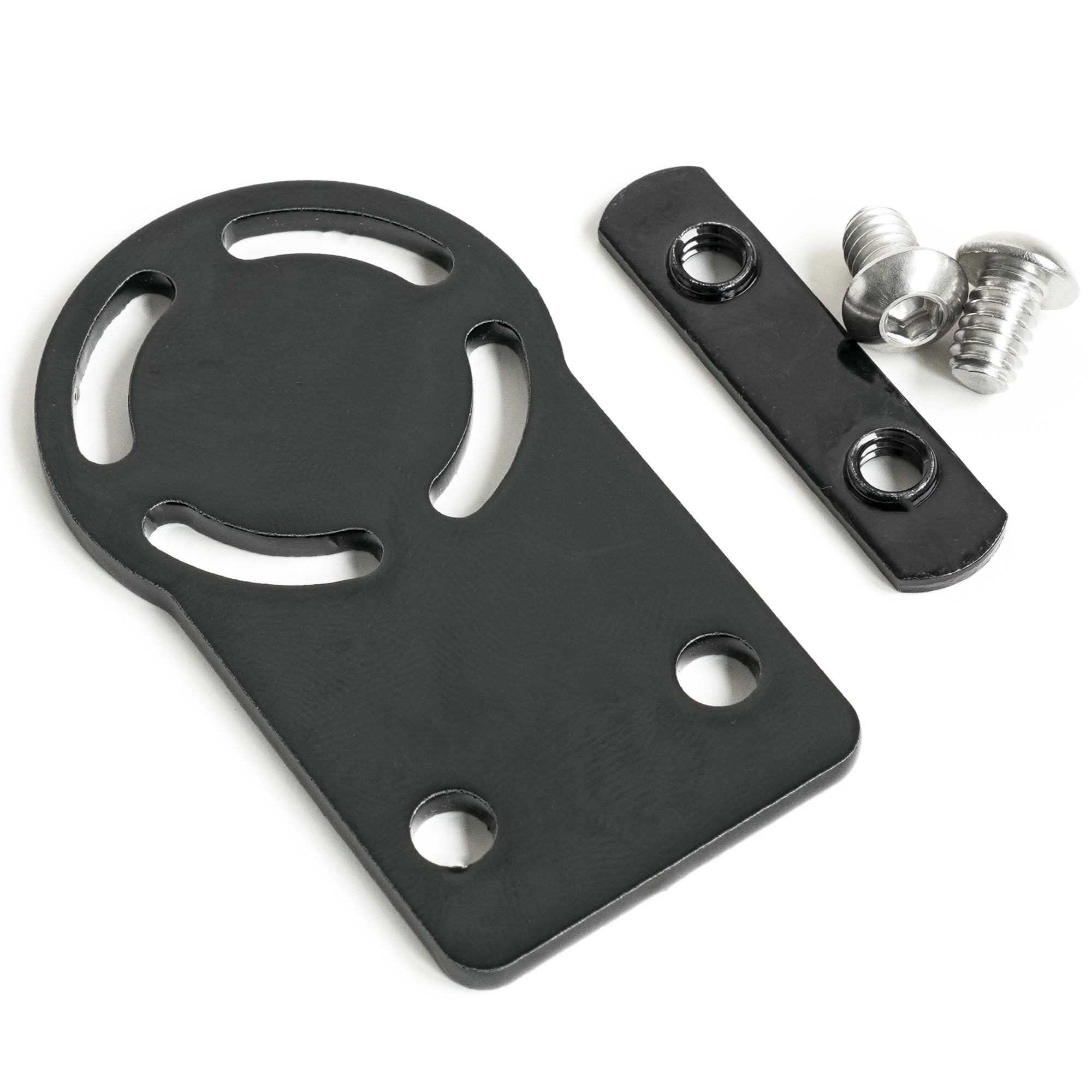

The Diamond K9000 Motorized Antenna Tilt allows to fold an antenna up or down (90 degrees) from the press of a button: The universal mounting brackets included with it need to be modified in order to work with 80/20 T-Slot’s crossbars. We wanted a clean, simple, and low-profile installation so we designed this mounting plate: Installation To complete this DIY project, you also need: Diamond K9000 Motorized Antenna Tilt. Flatline Van Co Low Pro Roof Rack (or any roof rack with 10-series or 15-series crossbars). WeBoost Drive Reach RV Cell Phone Signal Booster (or any antenna with Series-C coax Cable Assembly) 1. Install the mounting plate to the k9000 The K9000 Motorized Antenna Tilt comes with a universal base fitment bracket. Remove the four screws and discard the old bracket: Install the new mounting plate to the K9000 Motorized Mount (reuse the screws from previous step): 2. Mount your antenna to the k9000 Route the antenna through the antenna mount and fasten with the hardware provided with the WeBoost: 3. Install to your roof rack Loosely install the t-nut(s) and the screws onto the mounting plate (so it’s ready to load into the crossbar): Remove the crossbar, load the t-nut(s) from the crossbar end, reinstall the crossbar: Fastened the screws to secure the mounting plate to the desired position into the crossbar: 4. Adjust the tilt motion operating angle Power the K9000 into a cigar plug. Set the antenna to be fully raised by pressing and holding “UP” on the remote: If the antenna is not vertical, loosen the nut and adjust the antenna’s angle to your liking: Then, adjust the tilt lower limit (0-45°) to your liking (e.g. to clear solar panel or such) by rotating the grey knob on the body of the K9000: 6. cables Routing and Wiring The rest of the installation varies according to your van model, the antenna type, your electrical system, etc. You’ll most likely have to pass the antenna cable and K9000 power cord through the roof. This is usually done via a cable seal, junction box, or our Cable Entry Pad for Ford Transit. You can get inspiration from the weBoost antenna we installed on our van: weBoost Antenna Fold Up/Down Installation Compatibility Motorized Antenna Tilt: Diamond Antenna K9000 Aluminum Extrusion Crossbars: 10 or 15 Series. Specifications Mounting Plate: Dimensions: 3in x 1.75in x 0.15in (76mm x 45mm x 3.8mm). Screws Max Size: 1/4″ (M6). Material: Aluminum. Finish: Powder Coated (Gloss Black). Shipping Ships From: British Columbia, Canada. Carrier: Canada Post / USPS. Cost: Actual carrier shipping rate calculated at checkout. You can combine other items from our Store to save on shipping. Warranty, Returns & Refund Warranty: If there is an issue or manufacturing defect, we’ll be happy to send you another one free of charge! �� Returns & Refund: You are responsible of shipping the product back to us (including the shipping fees associated with it) for the following reasons: Ordered by mistake or if you changed your mind. Incompatibility (please check “Compatibility” section). Resources Diamond K9000 Motorized Antenna Mount Installation/Operating Instructions (DiamondAntenna.net) WeBoost Installation Guides (WeBoost.com) Flatline Van Co Low Pro Roof Rack Installation (faroutride.com) Motorized Antenna Tilt Installation on Roof Rack | weBoost Fold Up / Down (faroutride.com)
