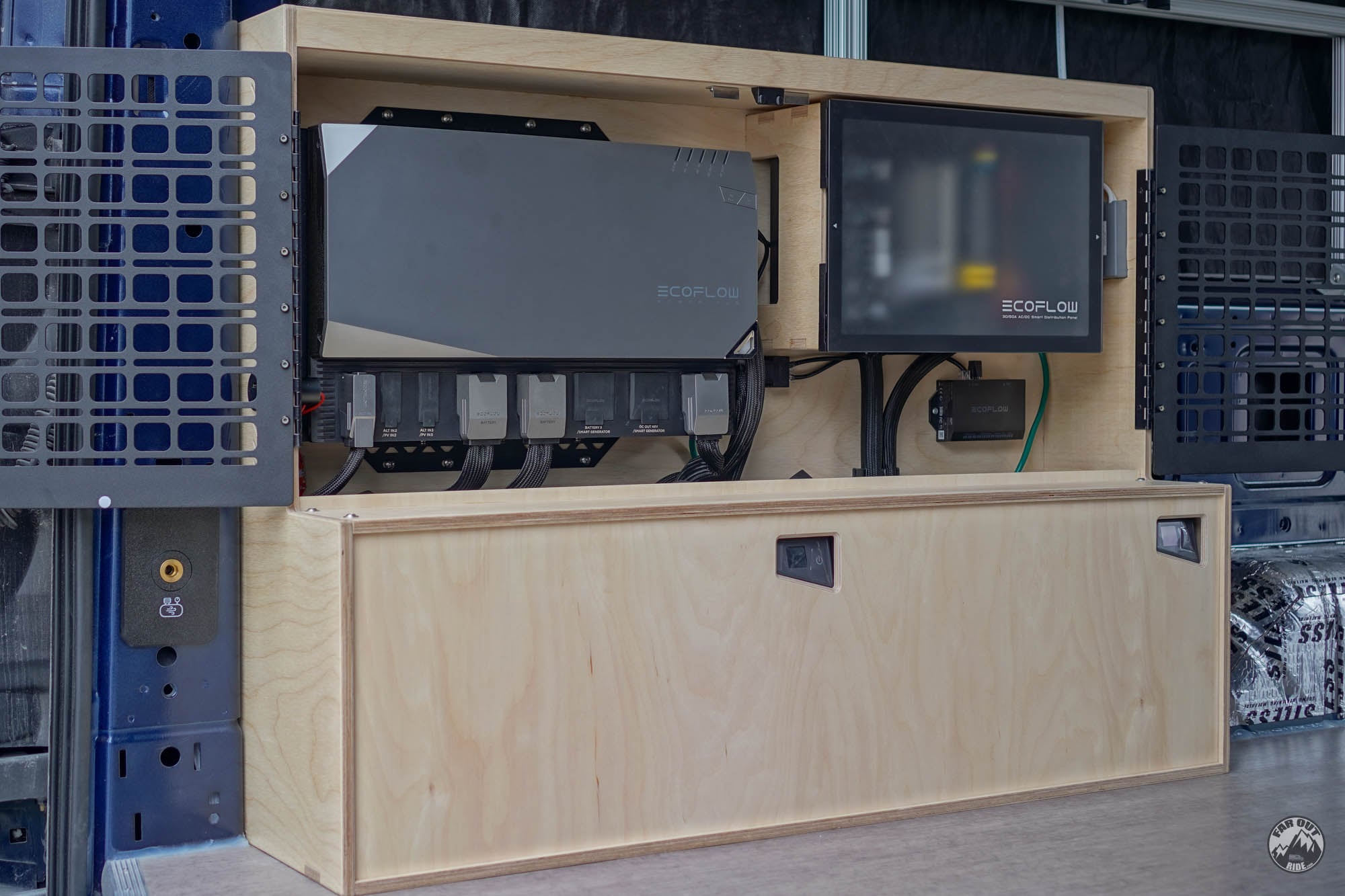

Read This First This is not a turnkey “Ikea-style” project… You will need tools (clamps, etc.) and woodworking skills. Please read our EcoFlow Installation Guide for an overview of the final result! This cabinet is designed to fit between the wheel well and the D-Pillar frame of an EXTENDED TRANSIT. This is a .dxf file (2D) and .step file (3D) with only geometry. You are responsible for creating your setup, tool paths, and generating the g-code for your machine. Tools required: 1/16″ Flat End Mill (small holes). 1/8″ Flat End Mill (most pockets and contours). Others: M6 x 30mm Flanged Button Head Screws (wall attachment). #8 x 1″ Wood Screws (floor attachment). Door Latches. Piano Hinges (with screws and nuts). USB Outlets. Aluminum Angle (3/16″ x 3/4″ x 3/4″). M6 Rivet Nuts. M6 x 16mm Flanged Button Head Screws (battery cover). EcoFlow Power Kit Electrical System | Start-To-Finish InstallationBuild Journal Van #2 | Electrical Systemfaroutride.com/ecoflow-install Files Included: Flat Parts (.dxf and .step) 3D Assembly (.step) Doors Stop (TPU) – 3D Print File Cover for Access Cutout (TPU) – 3D Print File DOWNLOAD Get the CNC Package and log in to unlock this download (and more)! �� Change log: V1: Initial release. V2: #4 screw holes added to non-visible surfaces. To facilitate assembly and gluing (use #4 screws to minimize the use of clamps).
