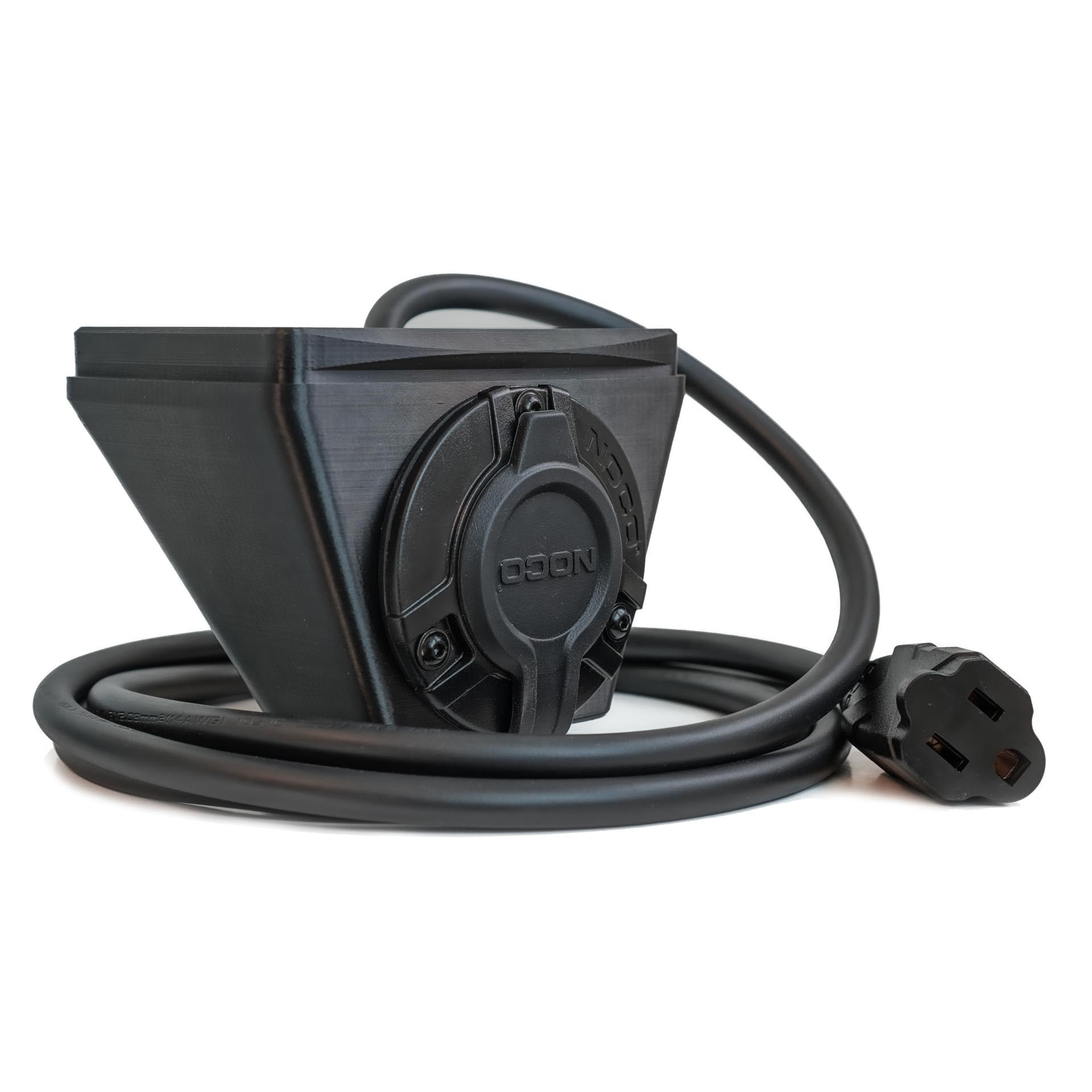

Installation To complete this DIY project, you will also need: NOCO 125V/15 Amp AC Plug Inlet with: 16-inch integrated cord. 6-foot integrated cord. 12-foot integrated cord. If the NOCO is out of stock, we tested this one and it’s a good alternative: 125V Shore Power Inlet Plug. 1. Install The Plug into the Entry Box Route the Noco power cord through the hole: Rotate the rubber cover to 6 o’clock and install the screws provided with your entry box: 2. Remove The D-Pillar Cutout Cover This can be done on the driver or passenger side. Driver side is shown below. Grab an edge of the rubber cover: Pull down to completely remove the cover: 3. Route the Extension Cord Inside the Van Route the power cord through the D-Pillar cutout: Grab and pull the power cord from inside the van: 4. Install the Entry Box into the D-Pillar Start with the back side of the entry box: Press on the front (squeeze) and push up to snap into place: (To remove the entry box press on the front side first, then pull down.) That’s it! The power cord can be routed in the wall and come out farther as needed: Doesn’t reduce ground clearance: Electrical System Wiring For years, we routed the charger/converter’s power cord through the doors or through the D-Pillar cutout… It worked OK, but the Entry Box is definitely more convenient! It works great with a DIY electrical system (e.g. FarOutVan1), or a Power Kit (e.g. FarOutVan2): DIY Wiring Diagram EcoFlow Power Kit Electrical System | Start-To-Finish InstallationBuild Journal Van #2 | Electrical Systemfaroutride.com/ecoflow-install Compatibility Van Models: Ford Transit (2015-Present). Shore AC Plug Inlet: NOCO 125V/15 Amp AC Inlet with 6-foot extension cord. Specifications Outside Dimensions: 5in x 3.5in x 3.5in (127mm x 89mm x 89mm). Material: Polycarbonate/PETG. Temperature Resistance: Up to 221F (105°C). Hardware Included: M4 Flanged Button Head Screws with Square Nuts (3 of each) Shipping Ships From: British Columbia, Canada. Carrier: Canada Post / USPS. Cost: Actual carrier shipping rate calculated at checkout. You can combine other items from our Store to save on shipping. wARRANTY, rETURNs & Refund Warranty: If there is an issue or manufacturing defect, we’ll be happy to send you another one free of charge! �� “Crash” replacement: if the Entry Box breaks during normal usage (rock, snow bank, etc.), we can offer 70% discount on a new one (plus shipping). All we ask is a photo of the damaged box. We still think the box should be the weakest link to prevent damage to the van structure. Returns & Refund: You are responsible of shipping the product back to us (including the shipping fees associated with it) for the following reasons: Ordered by mistake or if you changed your mind. Incompatibility (please check “Compatibility” section before ordering). ABOUT THIS PRODUCT Do It Yourself. We wanted a better shore power entry box for the Ford Transit, so we made one. This is an homemade product. Each part is individually 3D printed and assembled by us. This is not a mass-produced product. This is a crafted, hand-made product. Low Volume. We created this product for our own needs, to make just a few units. There is no way for us to ramp up the production and lower the price, unless we take it to injection molding manufacturing but that’s a whole another level we’re not considering at the moment. Also Available 30A Marinco Shore Power Inlet Entry Box Blank/DIY Entry Box Starlink/Solar Entry Box
